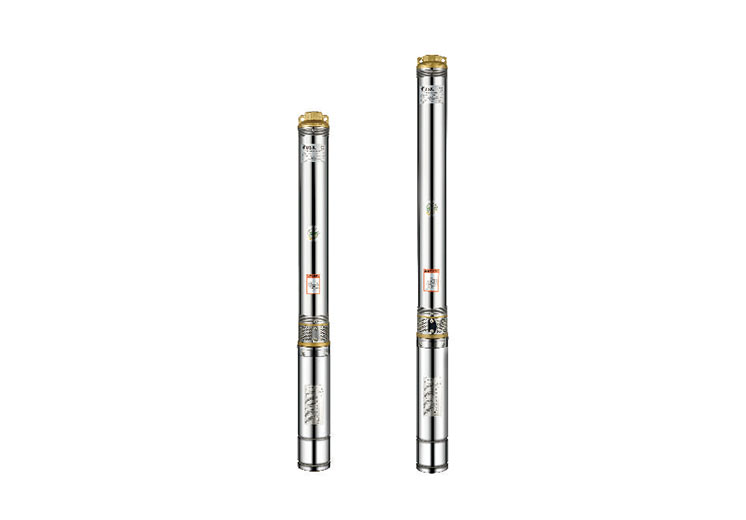

USK Submersible Pump 4SDM324 2HP
Original price was: KSh 20,000.00.KSh 17,500.00Current price is: KSh 17,500.00.
The $\text{USK Submersible Pump 4SDM324}$ is a very high-head, multi-stage, deep-well pump driven by a powerful $\mathbf{2\text{ HP}}$ single-phase motor.
Based on the standard naming convention for the $\text{4SDM}$ series, the model number $\text{4SDM324}$ provides the following breakdown:
- 4: 1$\mathbf{4\text{ inch}}$ pump diameter (suitable for 2$4\text{ inch}$ and larger boreholes).3
- SDM: Standard Submersible Deep Well Pump with a Single-Phase Motor.4
- 3: Represents the approximate rated flow rate series (e.g., $3 \text{ m}^3\text{/h}$).
- 24: This number, or a similar one like 22 for the $\text{2 \text{ HP}}$ category, indicates the number of impellers or stages. This large number of stages is responsible for the extreme lift capability.
Estimated Key Technical Specifications
Because the $\text{4SDM324}$ is a higher-powered model in the same flow series ($\text{3 \text{ m}^3\text{/h}}$) as the $\text{4SDM313}$ ($\text{1 \text{ HP}}$) and $\text{4SDM318}$ ($\text{1.5 \text{ HP}}$), its primary upgrade is its massive increase in maximum head (lift height).
Using data for the common $\text{4SDM3/22}$ $\text{2 \text{ HP}}$ pump (as models often vary slightly by manufacturer, but the general specifications are consistent for the flow/HP class):
| Feature | Typical Specification |
| Model | $\text{4SDM324}$ (or $\text{4SDM3/22}$) |
| Pump Type | Multi-Stage Centrifugal Submersible |
| Motor Power | $\mathbf{2\text{ HP}}$ ($\text{1.5 \text{ kW}}$) |
| Casing Diameter | $\mathbf{4\text{ inch}}$ |
| Max Head (Lift Height) | $\text{Approx. } 150 \text{ m}$ to $\mathbf{160\text{ m}}$ (meters) |
| Rated Flow Rate | $\text{Approx. } 3 \text{ m}^3\text{/h}$ ($\text{50 \text{ L/min}}$) |
| Max Flow Rate | Up to $\text{5.2 \text{ m}^3\text{h}}$ ($\text{87 \text{ L/min}}$) at low head |
| Number of Stages | $\mathbf{22}$ to $\mathbf{24}$ |
The $\text{USK Submersible Pump 4SDM324}$ is a very high-head, multi-stage, deep-well pump driven by a powerful $\mathbf{2\text{ HP}}$ single-phase motor.
Based on the standard naming convention for the $\text{4SDM}$ series, the model number $\text{4SDM324}$ provides the following breakdown:
- 4: 1$\mathbf{4\text{ inch}}$ pump diameter (suitable for 2$4\text{ inch}$ and larger boreholes).3
- SDM: Standard Submersible Deep Well Pump with a Single-Phase Motor.4
- 3: Represents the approximate rated flow rate series (e.g., $3 \text{ m}^3\text{/h}$).
- 24: This number, or a similar one like 22 for the $\text{2 \text{ HP}}$ category, indicates the number of impellers or stages. This large number of stages is responsible for the extreme lift capability.
Estimated Key Technical Specifications
Because the $\text{4SDM324}$ is a higher-powered model in the same flow series ($\text{3 \text{ m}^3\text{/h}}$) as the $\text{4SDM313}$ ($\text{1 \text{ HP}}$) and $\text{4SDM318}$ ($\text{1.5 \text{ HP}}$), its primary upgrade is its massive increase in maximum head (lift height).
Using data for the common $\text{4SDM3/22}$ $\text{2 \text{ HP}}$ pump (as models often vary slightly by manufacturer, but the general specifications are consistent for the flow/HP class):
| Feature | Typical Specification |
| Model | $\text{4SDM324}$ (or $\text{4SDM3/22}$) |
| Pump Type | Multi-Stage Centrifugal Submersible |
| Motor Power | $\mathbf{2\text{ HP}}$ ($\text{1.5 \text{ kW}}$) |
| Casing Diameter | $\mathbf{4\text{ inch}}$ |
| Max Head (Lift Height) | $\text{Approx. } 150 \text{ m}$ to $\mathbf{160\text{ m}}$ (meters) |
| Rated Flow Rate | $\text{Approx. } 3 \text{ m}^3\text{/h}$ ($\text{50 \text{ L/min}}$) |
| Max Flow Rate | Up to $\text{5.2 \text{ m}^3\text{h}}$ ($\text{87 \text{ L/min}}$) at low head |
| Number of Stages | $\mathbf{22}$ to $\mathbf{24}$ |
| Weight | 5 kg |
|---|
