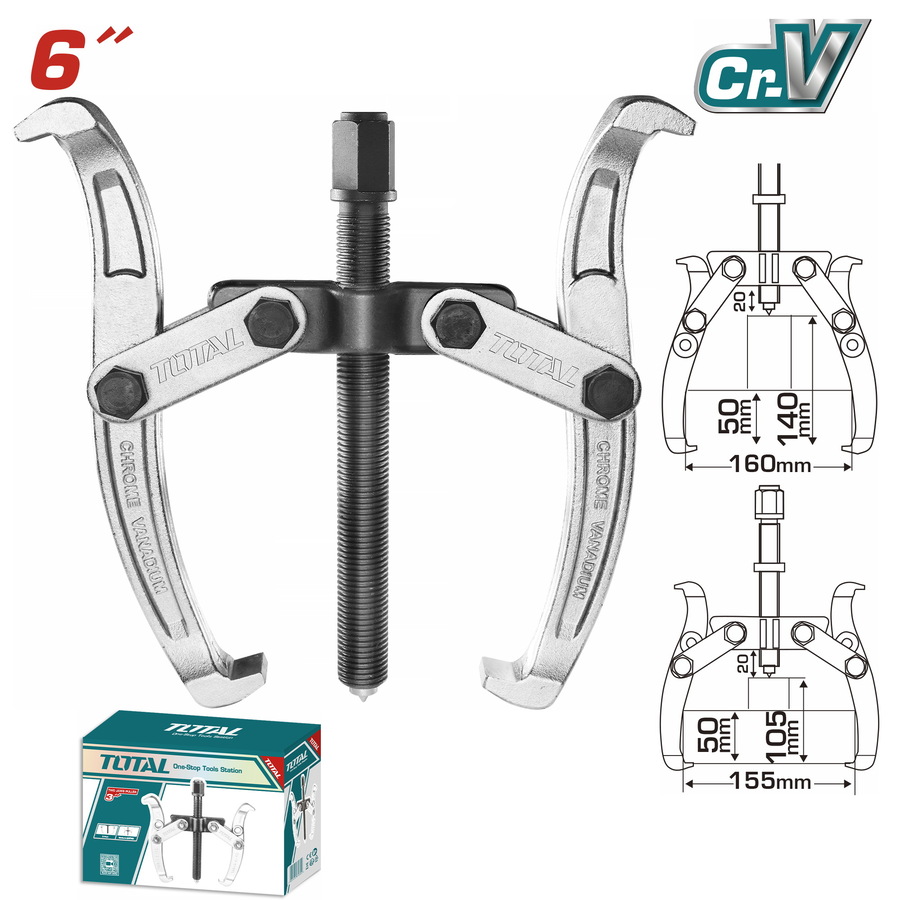

Total THTGP266 Two jaws puller Size:6″

Key Specifications

• Size: $6\text{ inches}$ ($150\text{ mm}$).

• Clamping Range & Physical Span:

  • Max Reach/Depth: $140\text{ mm}$ (inside height clearance for the jaws).

  • Max External Spread: up to $160\text{ mm}$ (maximum outer diameter it can grip).

  • Max Internal Spread: up to $155\text{ mm}$ (when jaws are reversed facing outward).

• Max Force Capacity: $4,000\text{ kg}$ ($8,818\text{ lbs}$) — doubling the mechanical force limit of the 3-inch model.

• Material: Heavy drop-forged Chrome Vanadium Steel (Cr-V) with a zinc-plated finish on the arms and a black oxide forcing screw.
