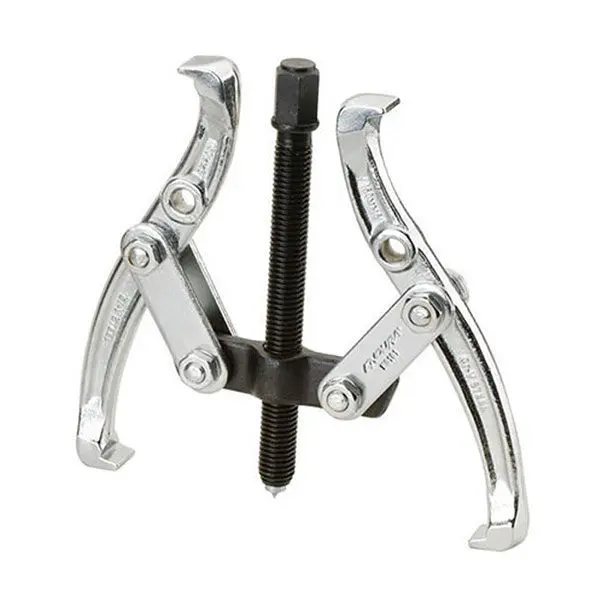

Total THTGP236 Two jaws puller Size:3″ 2Jaws,Maxforce:2000KG

Key Specifications

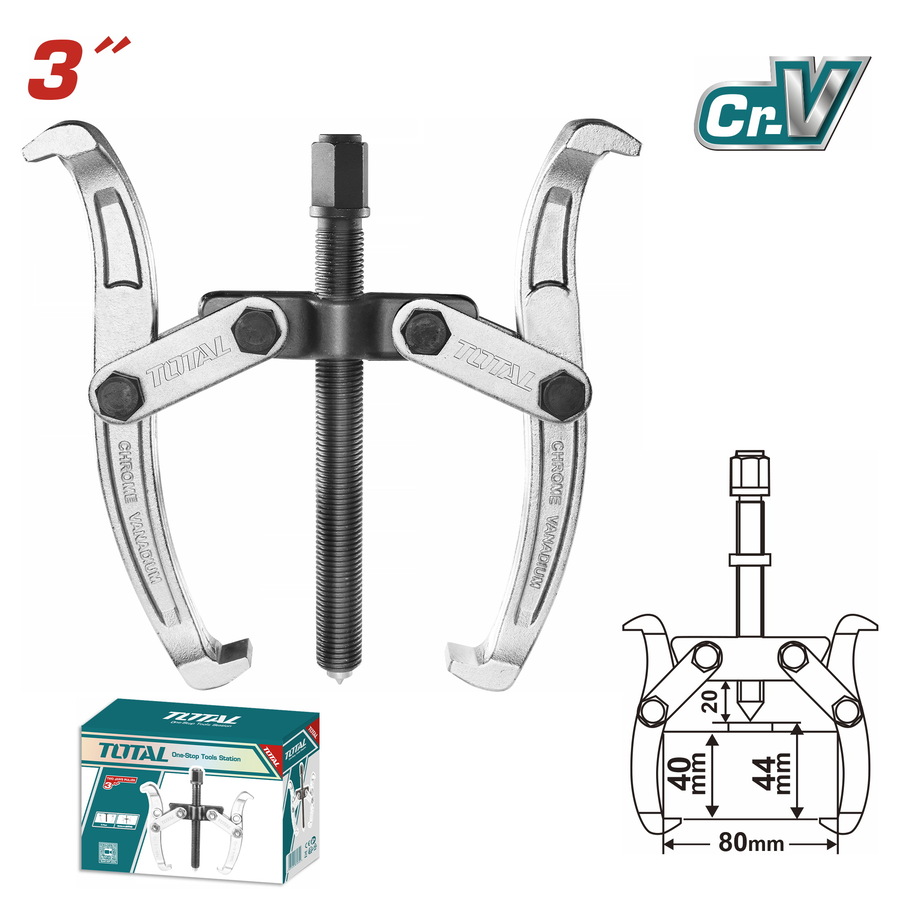

• Size: $3\text{ inches}$ ($75\text{ mm}$).

• Clamping Range:

  • Max Reach/Depth: $40\text{ mm}$ (inside height clearance).

  • Spread range: $44\text{ mm}$ up to $80\text{ mm}$ (adjustable width capacity).

• Max Force Capacity: $2,000\text{ kg}$ ($4,409\text{ lbs}$) of pulling force.

• Material: Drop-forged Chrome Vanadium Steel (Cr-V) with a zinc-plated finish on the jaws to resist corrosion and handle extreme mechanical stress.

• Surface Treatment: Black oxide-treated forcing screw (spindle) for smoother rotation, thread wear resistance, and high durability under heavy torque.
