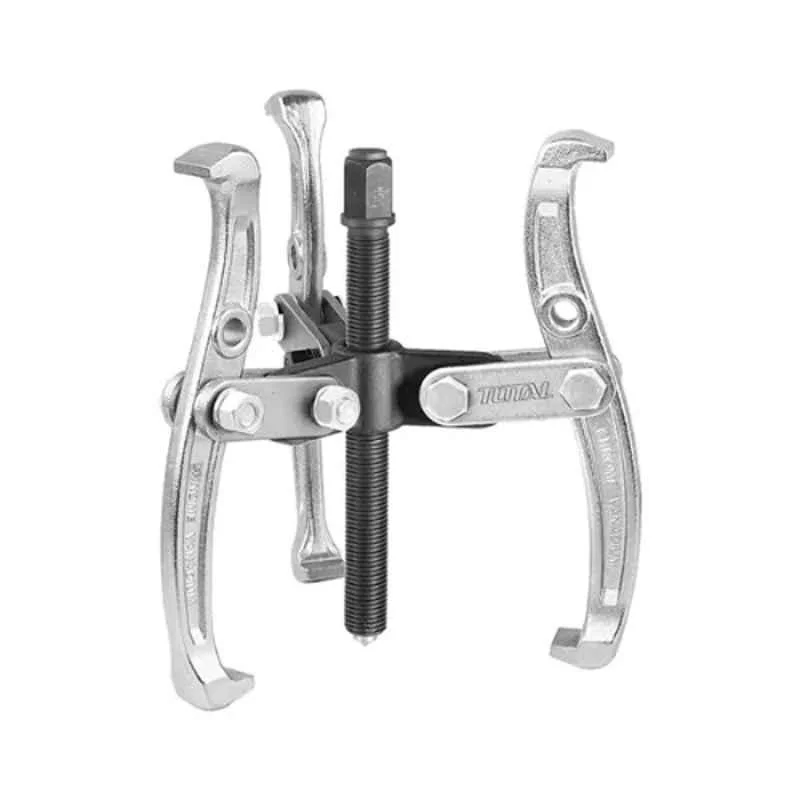

Total THTGP366 Three jaws puller Size:6″ 3Jaws,Maxforce:6000KG

Key Specifications

• Size: $6\text{ inches}$ ($150\text{ mm}$).

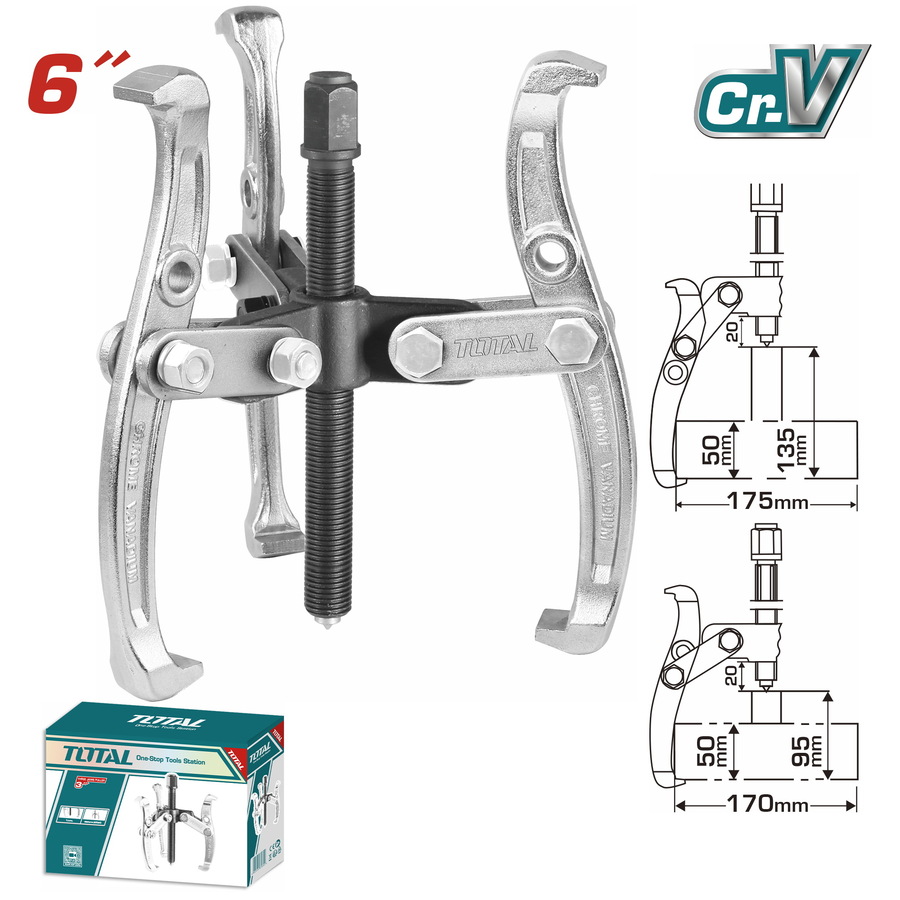

• Clamping Range & Physical Span:

  • Max Reach/Depth: $135\text{ mm}$ (inside clearance from the crosshead to the hooks).

  • Max External Spread: up to $175\text{ mm}$.

  • Max Internal Spread: up to $170\text{ mm}$ (when the hooks are reversed outward).

• Max Force Capacity: $6,000\text{ kg}$ ($13,227\text{ lbs}$).

• Material: Heavy drop-forged Chrome Vanadium Steel (Cr-V) with a black oxide forcing screw and zinc-plated jaws.
