Kato Germany water pump HIGH PRESSURE 2 inches 7.5hp Engine
KSh 28,500.00
Technical Specifications
-

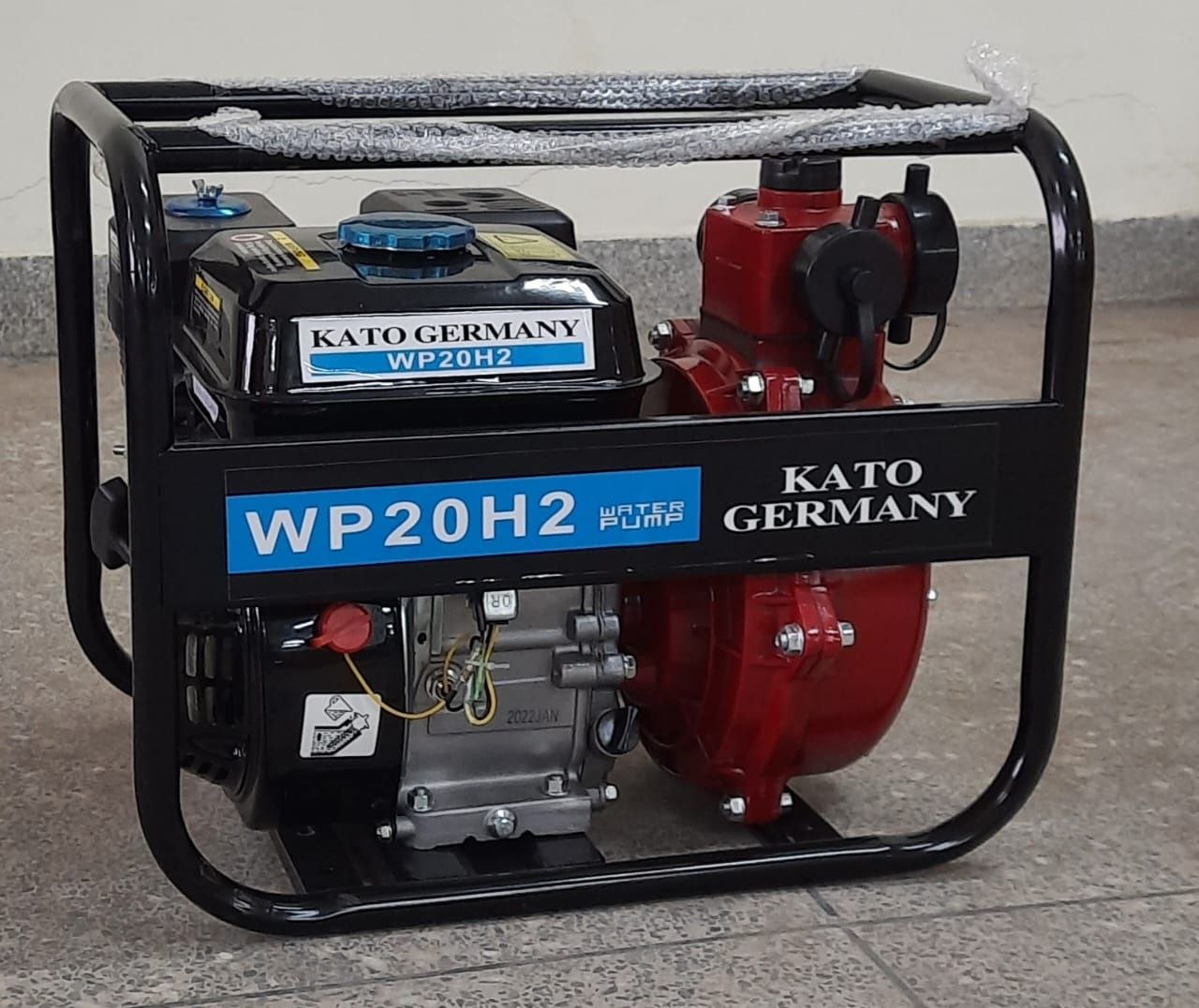

Model: WP20H2 (High-Pressure / High-Head Series)
-
Engine Power: 7.5 HP, 4-stroke, OHV (Overhead Valve), single-cylinder air-cooled petrol engine
-
Inlet/Outlet Port Size: 2 inches (50 mm)
-
Pump Mechanism: Twin-Impeller (Double Impeller) High-Head System
-
Maximum Total Head (Lift): 90 to 100 meters (Total physical vertical height plus horizontal pipeline friction drop combined)
-
Maximum Output Pressure: Approx. 9 to 10 Bar ($130\text{–}145\text{ PSI}$)
-
Maximum Flow Capacity: Approx. 30,000 Liters per hour (500 L/min) under low-head conditions
-
Maximum Suction Head: 7 to 8 meters (The vertical depth from which it can draw water up)
Technical Specifications
-
Model: WP20H2 (High-Pressure / High-Head Series)
-
Engine Power: 7.5 HP, 4-stroke, OHV (Overhead Valve), single-cylinder air-cooled petrol engine
-
Inlet/Outlet Port Size: 2 inches (50 mm)
-
Pump Mechanism: Twin-Impeller (Double Impeller) High-Head System
-
Maximum Total Head (Lift): 90 to 100 meters (Total physical vertical height plus horizontal pipeline friction drop combined)
-
Maximum Output Pressure: Approx. 9 to 10 Bar ($130\text{–}145\text{ PSI}$)
-
Maximum Flow Capacity: Approx. 30,000 Liters per hour (500 L/min) under low-head conditions
-
Maximum Suction Head: 7 to 8 meters (The vertical depth from which it can draw water up)
| Weight | 10 kg |
|---|
