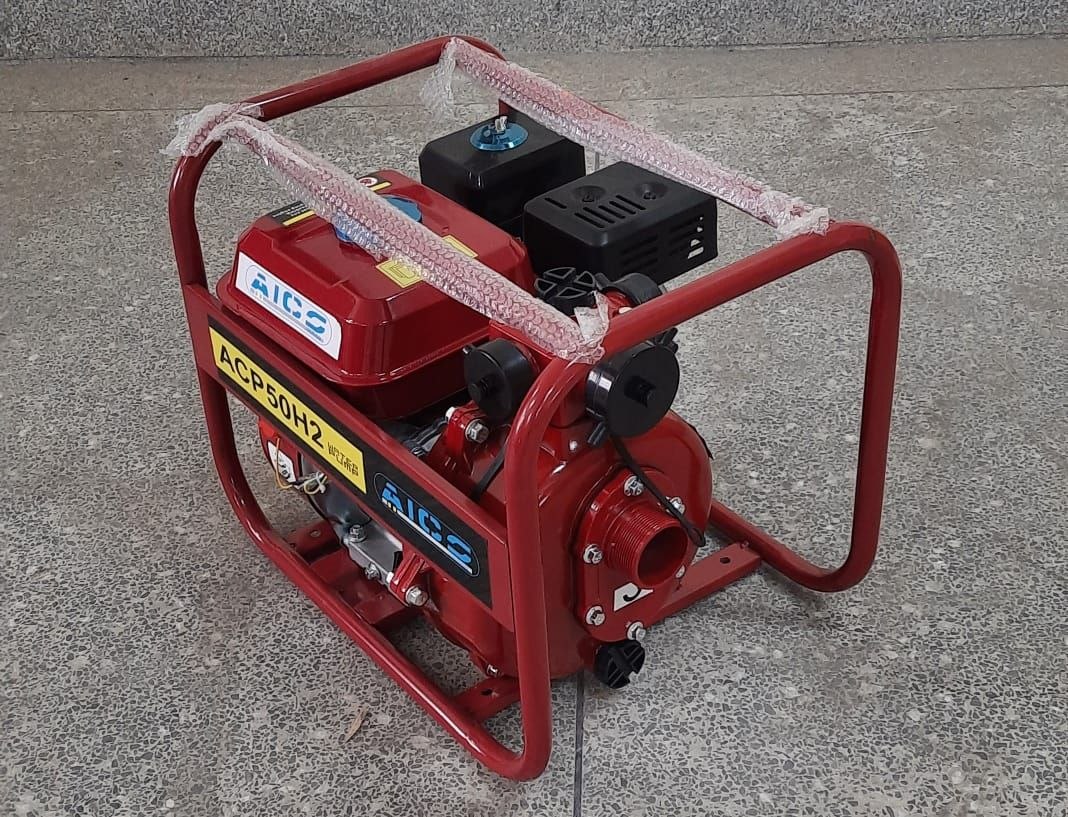

Aico Japan water pump HIGH PRESSURE 2 inches 8hp Engine

Technical Specifications

• Model: ACP50H2 (High-Pressure Series)

• Engine Power: 8.0 HP, 4-stroke, OHV (Overhead Valve), single-cylinder air-cooled petrol engine

• Inlet/Outlet Port Size: 2 inches (50 mm)

• Pump Mechanism: Twin-Impeller (Double Impeller) High-Head System

• Maximum Total Head (Lift): 95 to 105 meters (Total physical vertical height plus horizontal pipeline friction drop combined)

• Maximum Output Pressure: Approx. 9.5 to 10.5 Bar (approx. $137\text{–}152\text{ PSI}$)

• Maximum Flow Capacity: Approx. 30,000 Liters per hour (500 L/min) under low-head conditions

• Maximum Suction Head: 7 to 8 meters (The vertical depth from which it can pull water up)
