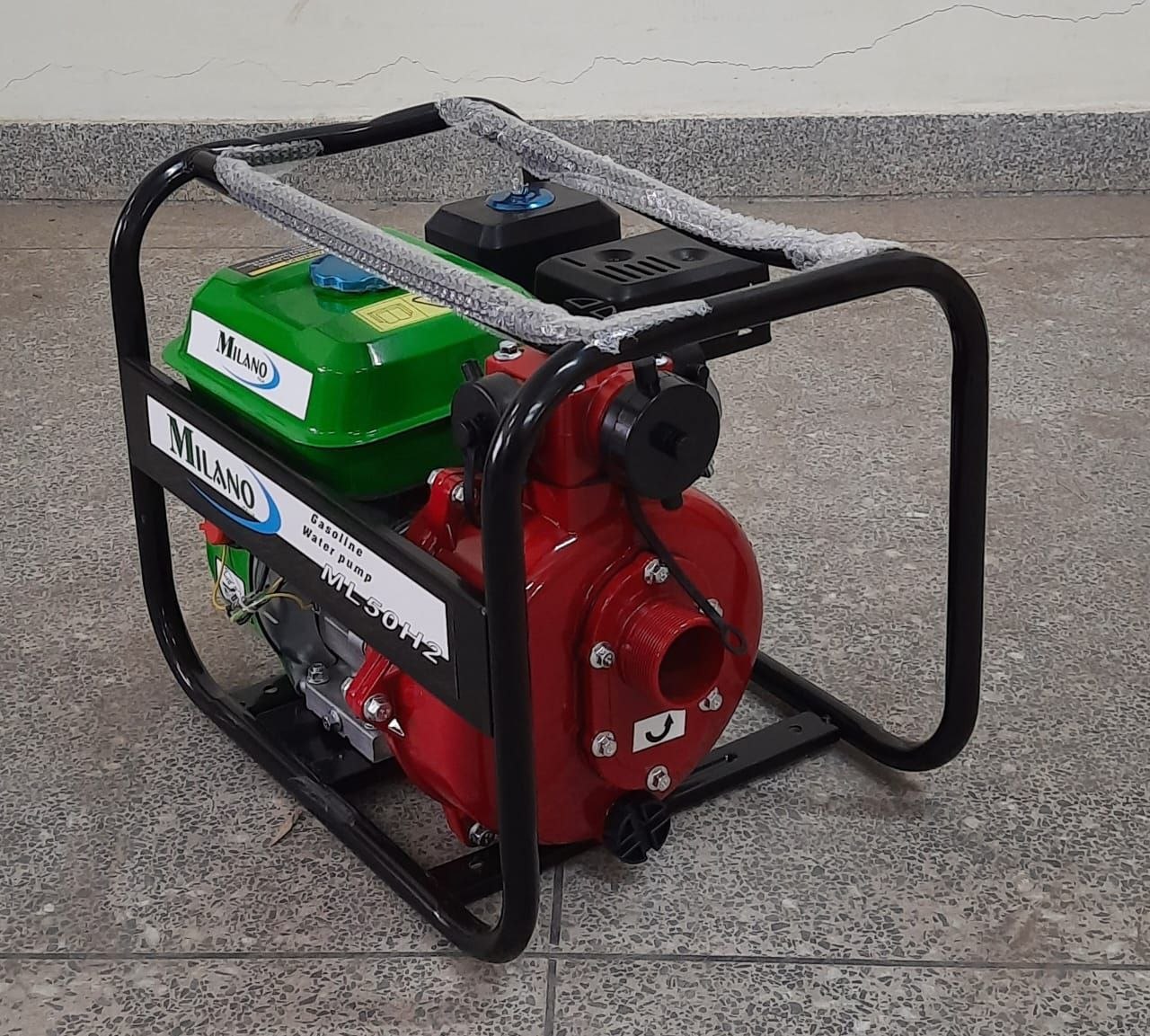

Milano Italia water pump HIGH PRESSURE 2 inches 7.5hp Engine

Technical Specifications

• Model: ML50H2 (High-Pressure / Twin-Impeller Series)

• Engine Power: 7.5 HP, 4-stroke, OHV (Overhead Valve), single-cylinder air-cooled petrol engine

• Inlet/Outlet Port Size: 2 inches (50 mm)

• Pump Mechanism: Twin-Impeller (Double Impeller) High-Head System

• Maximum Total Head (Lift): 90 to 100 meters (Total physical vertical height plus horizontal pipe friction drop combined)

• Maximum Pressure: Approx. 9 to 10 Bar (approx. 130–145 PSI)

• Maximum Flow Capacity: Approx. 30,000 Liters per hour (under low-head conditions)

• Maximum Suction Head: 7 to 8 meters (The maximum physical depth from which it can draw water vertically)

• Starting System: Manual recoil pull-start with automatic decompression
