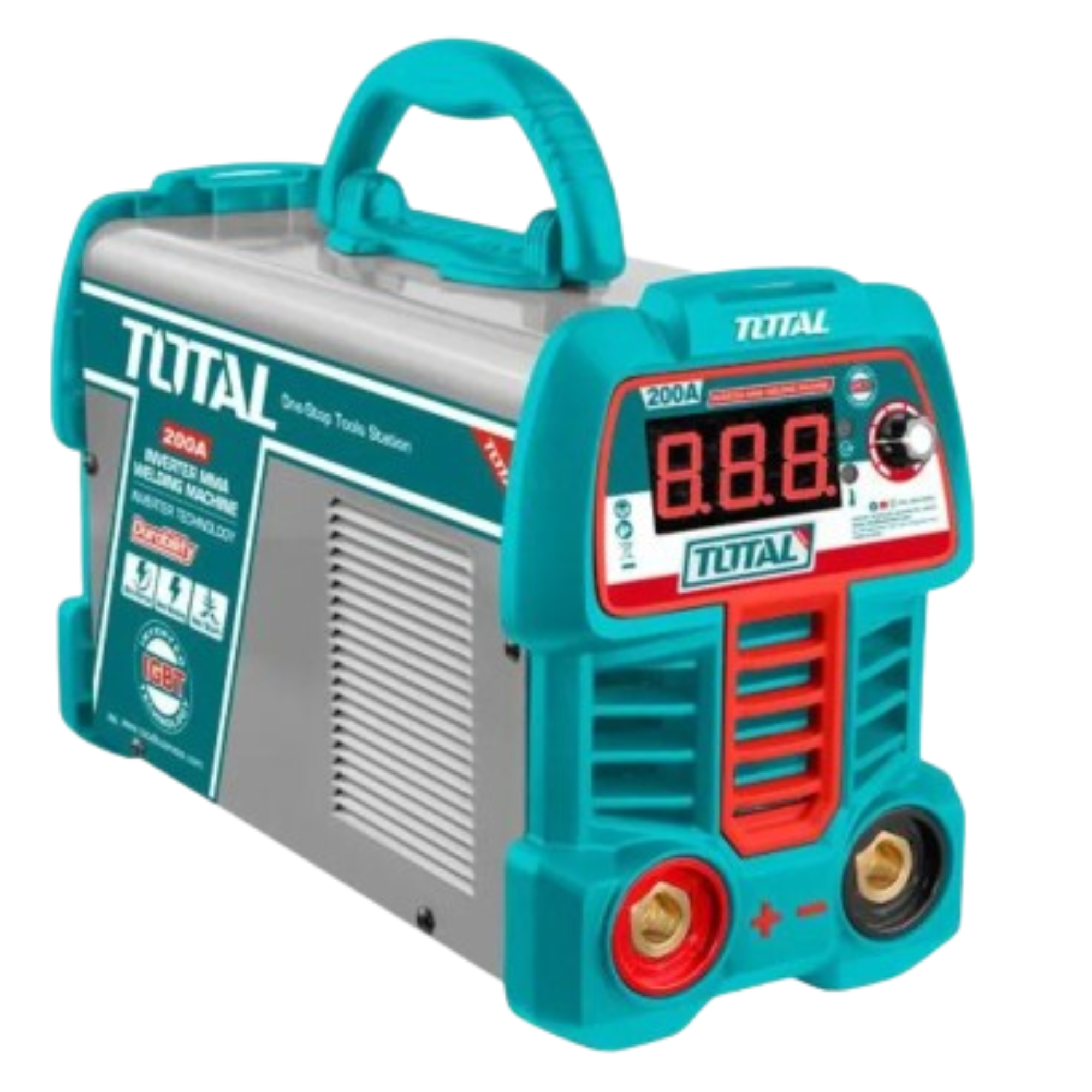

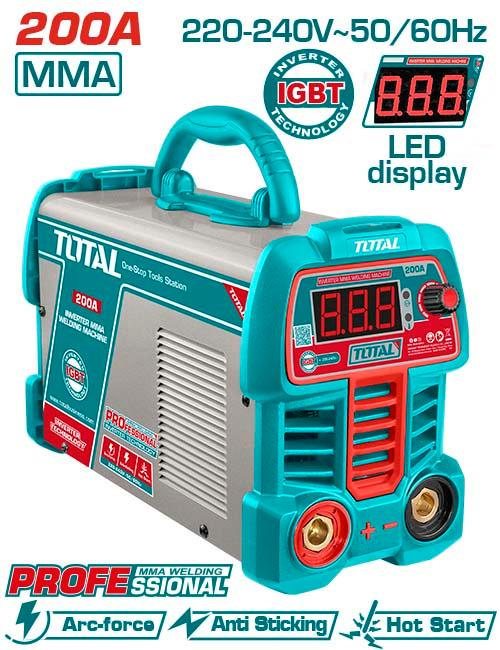

Total TW220069 Inverter MMA welding machine 200A
KSh 19,999.00
Inverter MMA welding
machine
IGBT inverter technology
Input voltage: 1~220-240V
Frequency: 50/60Hz
Output current: 15-200A
Duty cycle: 200A@60%
LED display
No-load voltage: 79V
Max.output current: 200A
Diameter of electrode: 1.6-4.0mm
Anti-stick/Hot start/Arc-force
1 Pcs electrode holder with cable
1 Pcs earth clamp with cable
1 Pcs wire brush
1 Pcs helmet
Packed by color box
TOTAL TW220069 is a 200A DC inverter MMA (Manual Metal Arc / Stick) welding machine powered by IGBT (Insulated Gate Bipolar Transistor) technology. Designed for light fabrication, maintenance, and field repair work, it provides smooth arc stability, high thermal efficiency, and energy savings compared to traditional transformer-based welders.
Technical Specifications
| Feature | Specification |
| Model Number | TW220069 |
| Power Technology | IGBT Inverter |
| Input Voltage | 220–240 V ~ 50/60 Hz (Single Phase) |
| Output Current Range | 15 A – 200 A |
| Duty Cycle | 60% @ 200 A |
| No-Load Voltage | 79 V |
| Usable Electrode Diameter | 1.6 mm – 4.0 mm |
| Display | Digital LED Amperage Screen |
| Weight | ~5.4 kg |
Key Features & Built-in Functions
-
IGBT Inverter Technology: Delivers smooth, stable arc characteristics with low spatter and minimal power draw.
-
Hot Start: Automatically boosts current when striking the arc to make electrode ignition easy and smooth without sticking.
-
Arc Force: Dynamically increases amperage when the arc gap narrows to prevent the rod from freezing into the weld pool.
-
Anti-Stick Function: Reduces current automatically if the electrode melts into the pool, allowing you to free the rod cleanly without ruining it.
-
Thermal Protection: Integrated fan cooling and thermal overload sensors protect internal boards from damage during high-duty continuous cycles.
| Weight | 5 kg |
|---|
