Total TMT7610001 Digital AC clamp meter
KSh 7,999.00
Total THTS33001 Test pencil AC 12-300V
KSh 2,450.00

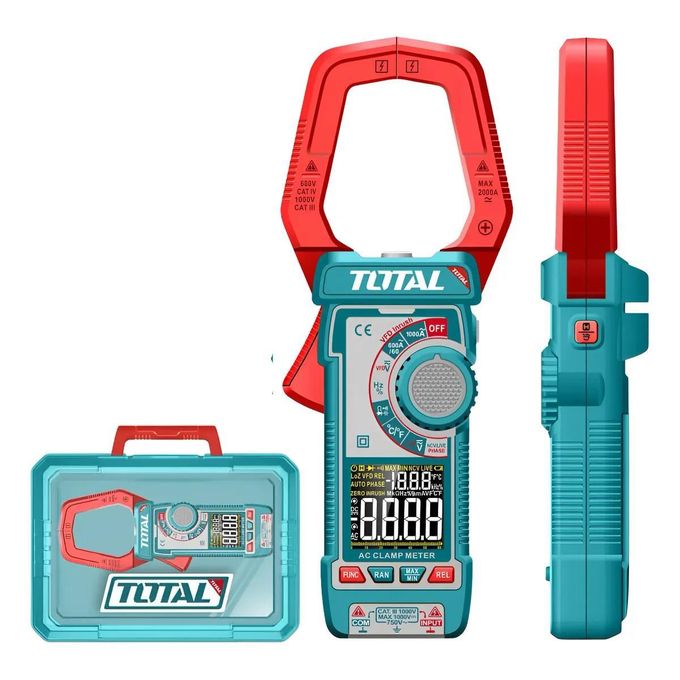

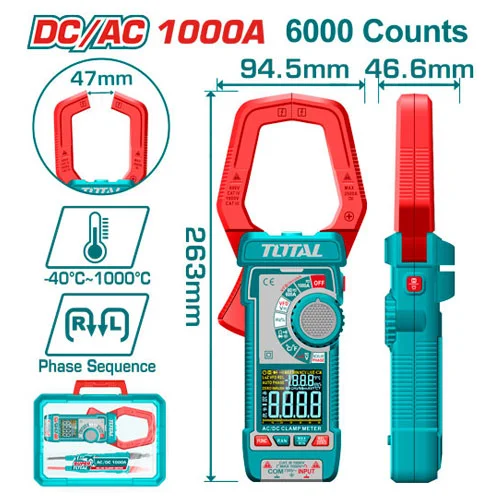

Total TMT7610002 DC/AC clamp meter 1200A 6000Counts
KSh 9,500.00
DC/AC clamp meter
VA colour display screen
Display : TRUR RMS 6000 counts
DC/AC Current:60A/600A/1200A
DC Voltage:600mV/6V/60V/600V/1000V
AC Voltage:600mV/6V/60V/600V/750V
Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60
MΩ
Capacitance:60.00nF/600.0nF/6.000uF/60.00
uF/600.0uF/6.000mF/60.00mF
Frequency:10Hz/100Hz/1000Hz/10kHz/100k
Hz/1000kHz/10MHz
Temperature:-40.0℃~1000.0℃(-
40.0℉~1832.0℉)
Description
Key Technical Specifications
| Feature / Test Parameter | Measurement Range |
| DC/AC Current (Jaw) | 60A / 600A / 1000A (Peak up to 1200A) |
| DC Voltage | 600mV / 6V / 60V / 600V / 1000V |
| AC Voltage | 600mV / 6V / 60V / 600V / 750V |
| Resistance | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ |
| Capacitance | 60nF to 60mF |
| Frequency | 10Hz to 10MHz |
| Temperature | -40°C to 1000°C (-40°F to 1832°F) |
| Display Type | VA Color Display Screen (True RMS 6000 Counts) |
Additional information
| Weight | 5 kg |
|---|
