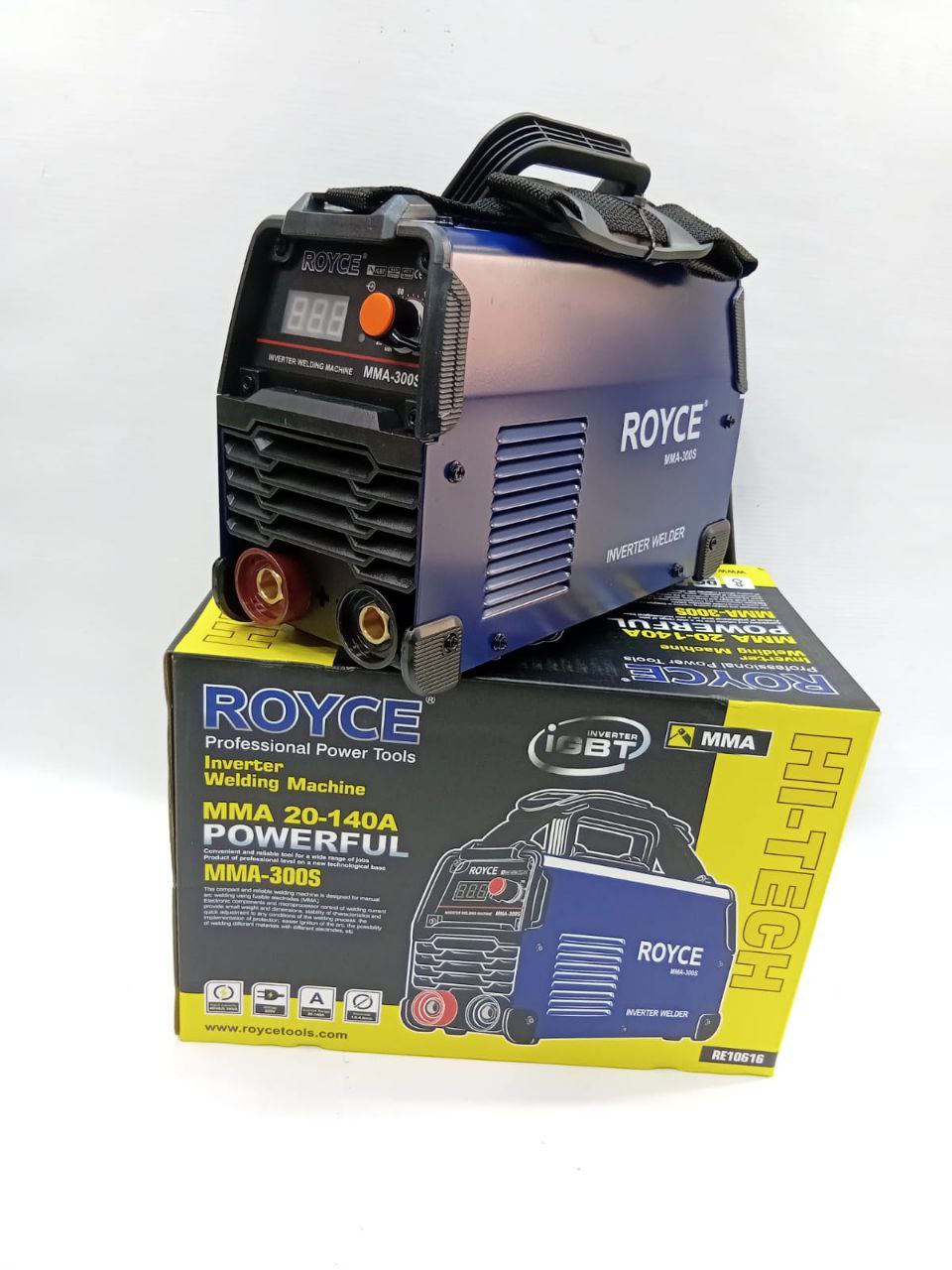

Royce Inverter Welding Machine 300S

1. Core Technology and Performance

• Type: Inverter Stick Welder (MMA/SMAW). This means it is designed for manual metal arc welding (using coated electrodes/welding rods).²



• Technology: Features IGBT (Insulated-Gate Bipolar Transistor) technology.³ This is a modern component that makes the welder smaller, lighter, more energy efficient, and provides a smoother, more stable welding arc than older transformer-based machines.⁴



• Current Range: 20 Amps to 300 Amps.⁵



  • The 300A maximum is very high for a 220V single-phase machine and provides the power needed for welding thicker materials.⁶



  • The 20A minimum is good for working with thinner materials or smaller rods.

• Input Voltage: Standard ⁷$\mathbf{220 \text{ V}}$ to ⁸$\mathbf{230 \text{ V}}$ (single-phase).⁹



2. Usability and Features

• Usable Electrode Diameter: ¹⁰$\mathbf{1.6 \text{ mm}}$ up to ¹¹$\mathbf{4.0 \text{ mm}}$ (or up to ¹²$\mathbf{5.0 \text{ mm}}$ according to some retailers).¹³ This is a wide range, allowing you to handle everything from light sheet metal to heavy structural steel.



• Portability: The inverter design makes it lightweight (often around 5-8 kg) and compact, usually featuring a handle and shoulder strap for easy transport.¹⁴



• Hot Start Function: This feature automatically increases the current momentarily when starting the arc, which helps prevent the electrode from sticking to the workpiece.¹⁵
