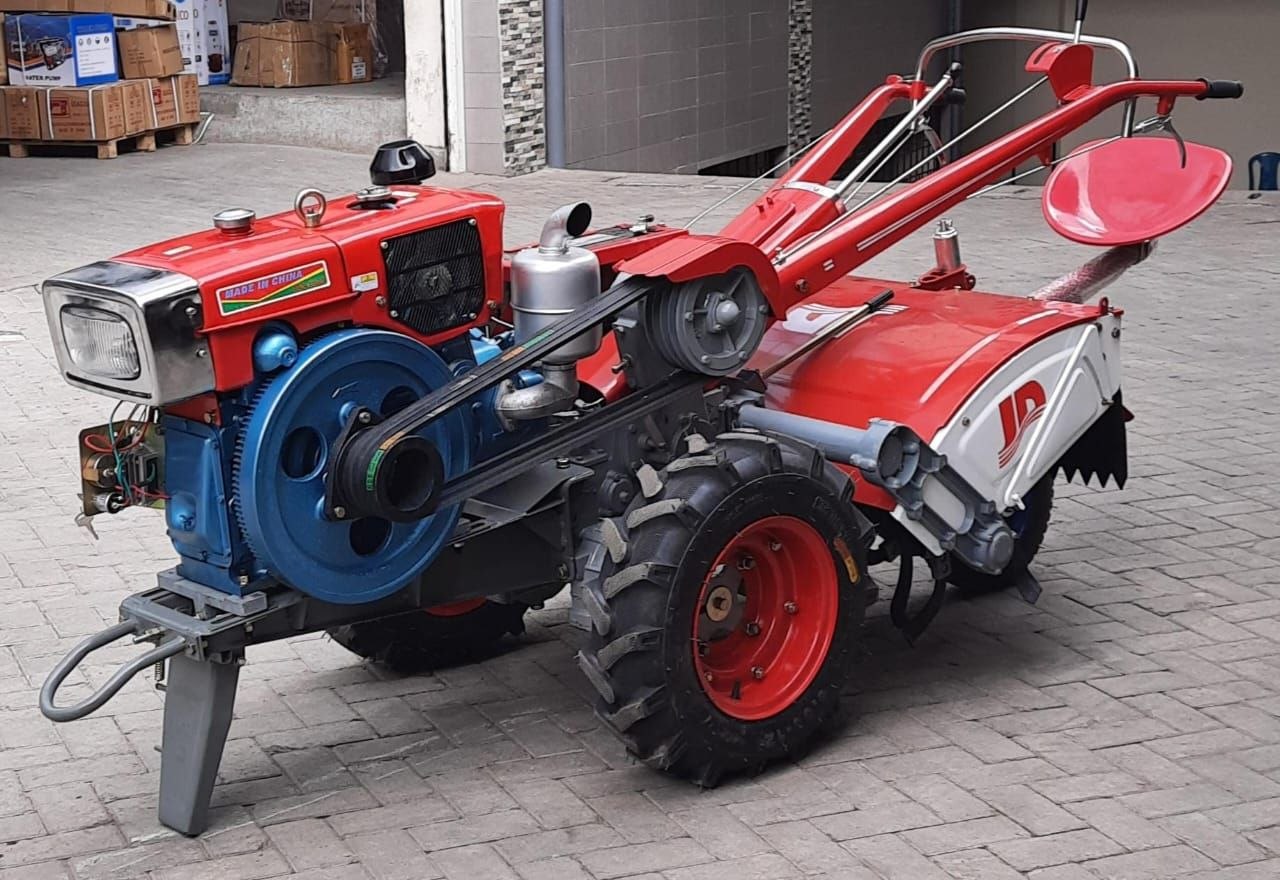

JIADI Walking Diesel Tractor 16HP with IMPLEMENTS

Technical Specifications

• Brand/Model: JIADI JD16L Series

• Engine Type: 16 HP, Heavy-Duty Single-Cylinder, 4-Stroke, Horizontal Water-Cooled Diesel Engine (typically utilizes a hopper or condenser radiator system)

• Displacement / Torque: High-torque output at low RPM, optimized for heavy load pulling

• Fuel Capacity: Approx. 8 to 11 Liters (Diesel)

• Transmission: Heavy-duty gear drive transmission with multiple forward speeds and reverse gears ($6\text{ Forward} + 2\text{ Reverse}$ configurations are standard for this class)

• Clutch System: Multiple-plate dry disc clutch or heavy-duty multi-belt tension clutch system

• Steering Control: Dual independent hand-lever steering clutches (isolates power to left/right wheel for zero-turn maneuvering)

• Power Take-Off (PTO): Rear gear-driven spline PTO shaft for powering active implements (like a rotary tiller)

• Wheels: Large, deep-lug agricultural traction tires (typically $6.00\text{-}12$ or $6.50\text{-}16$ size)
