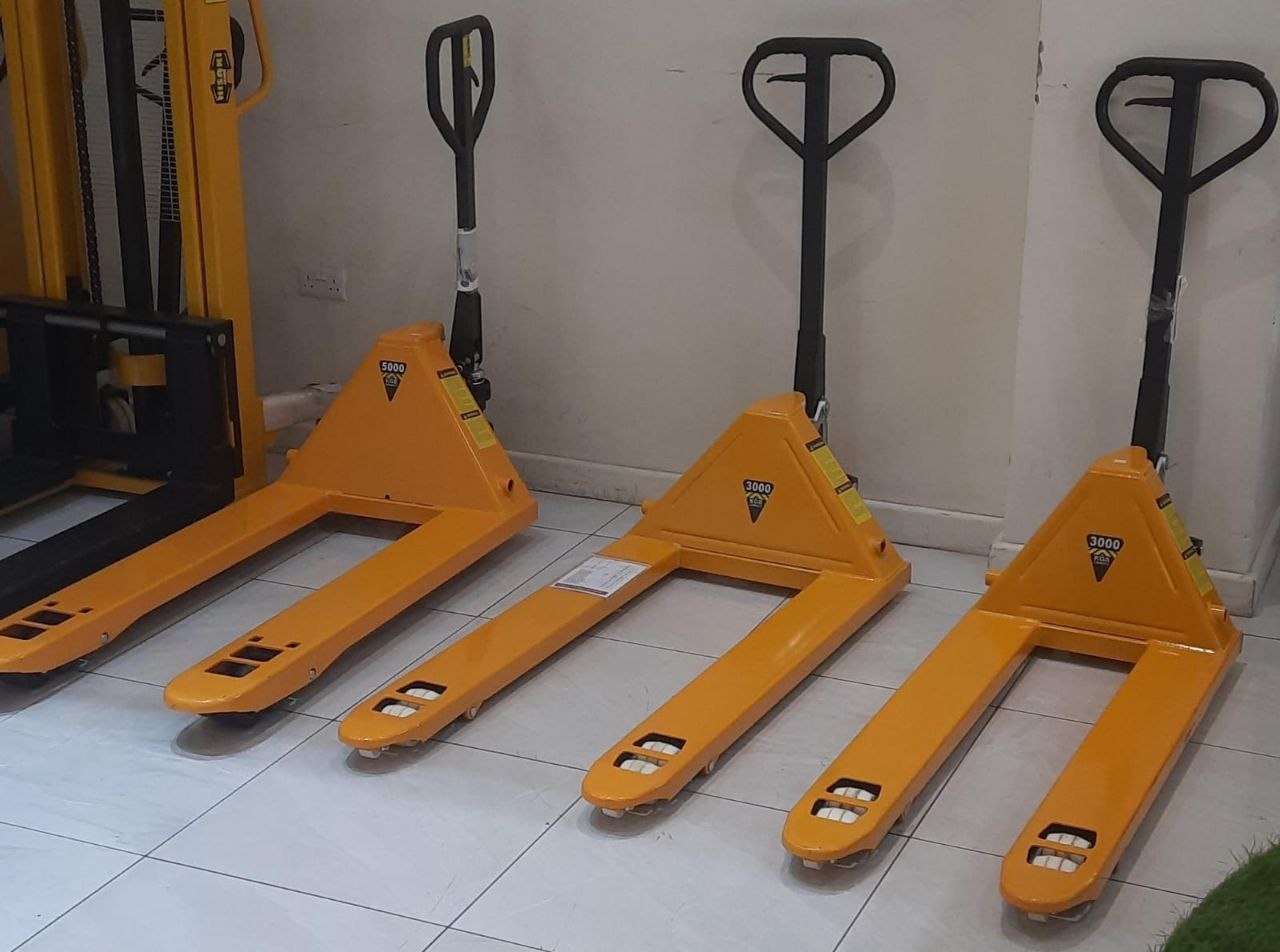

Hisaki Japan Manual Pallet -HPT30-685 Capacity 3 Ton Wide

Technical Specifications

• Brand/Series: Hisaki Japan Industrial Handling Series

• Model: HPT30-685 (Wide)

• Load Capacity: 3.0 Tonnes ($3,000\text{ kg}$)

• Overall Fork Width: 685 mm (Wide Edition)

• Fork Length: 1150 mm / 1220 mm (Standard length optimized for complete pallet support)

• Single Fork Width: Approx. 160 mm

• Minimum Lowered Fork Height: 75 mm / 85 mm (Low-profile entry)

• Maximum Lift Height: 195 mm / 200 mm

• Pump Type: Heavy-Duty Monoblock Cast-Iron Hydraulic Leak-Proof Pump with integrated overload bypass valve

• Steering/Drive Wheels: Dual 180 mm Polyurethane (PU) or heavy nylon wheels with sealed bearings
