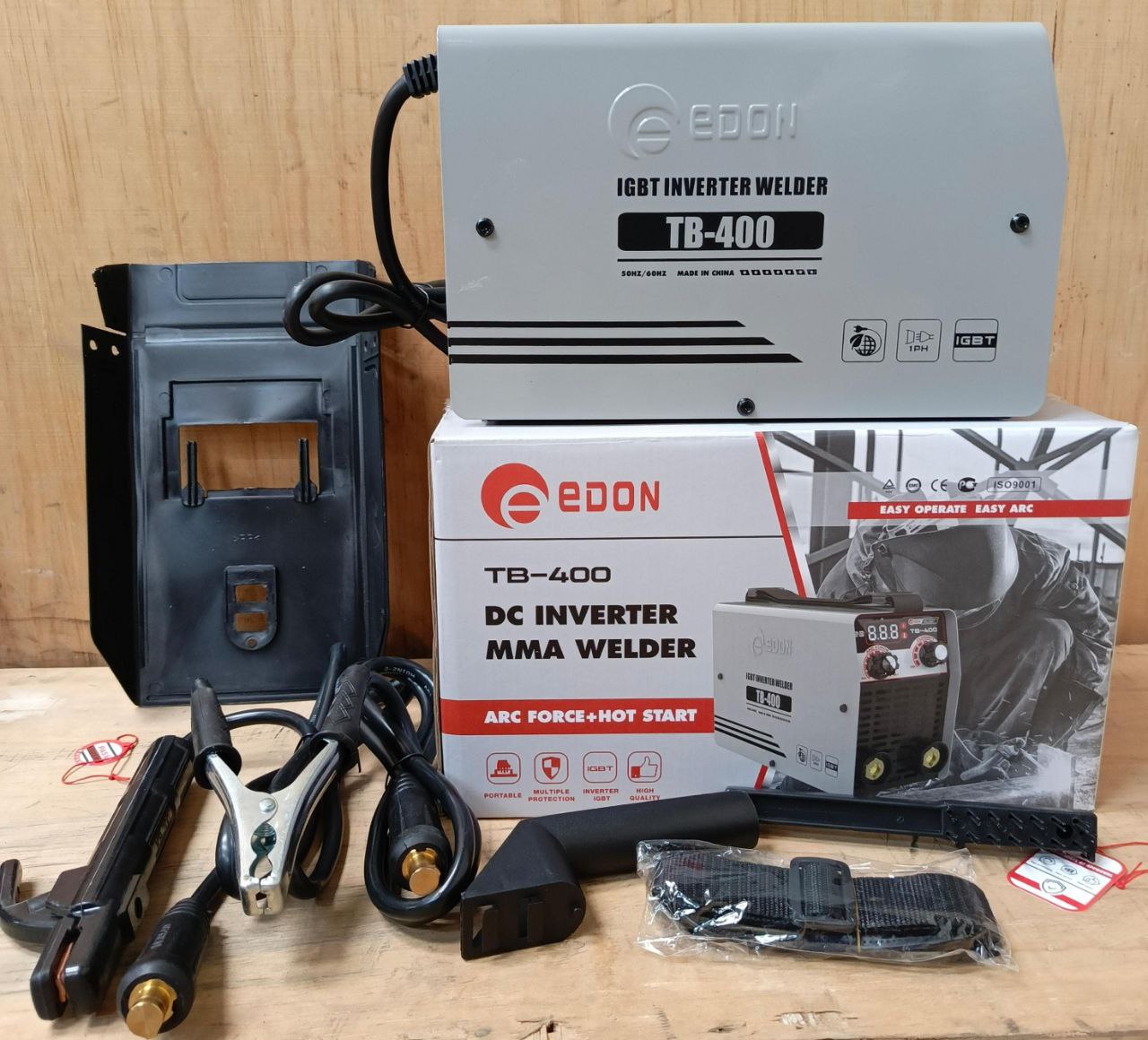

Edon TB400 inverter welding machine
Original price was: KSh 15,000.00.KSh 10,750.00Current price is: KSh 10,750.00.
Edon TB-400 Key SpecificationsFeatureTypical SpecificationInsightWelding ProcessMMA (Stick/Arc)Designed exclusively for stick welding.TechnologyIGBT InverterEnsures it is small, lightweight, and energy-efficient.Input VoltageAC 220V/230V (Single Phase)Plugs into standard household power (in many regions).Max. Output Current160 AmpsThe actual maximum continuous current, despite the “400” name.Rated Duty Cycle60% at 160ACan weld at its maximum rated output for 6 minutes out of every 10 minutes.Electrode Diameter1.6 mm to 4.0 mmThe 4.0 mm electrode use is possible but likely limited to short tack welds; it is ideal for continuous use of 3.2 mm (1/8 inch) electrodes or smaller.WeightVery light, around 3.4 kg to 3.5 kgExcellent for jobs on-site, overhead work, or portability around a workshop.
Edon TB-400 Key Specifications
| Feature | Typical Specification | Insight |
| Welding Process | MMA (Stick/Arc) | Designed exclusively for stick welding. |
| Technology | IGBT Inverter | Ensures it is small, lightweight, and energy-efficient. |
| Input Voltage | AC 220V/230V (Single Phase) | Plugs into standard household power (in many regions). |
| Max. Output Current | 160 Amps | The actual maximum continuous current, despite the “400” name. |
| Rated Duty Cycle | 60% at 160A | Can weld at its maximum rated output for 6 minutes out of every 10 minutes. |
| Electrode Diameter | 1.6 mm to 4.0 mm | The 4.0 mm electrode use is possible but likely limited to short tack welds; it is ideal for continuous use of 3.2 mm (1/8 inch) electrodes or smaller. |
| Weight | Very light, around 3.4 kg to 3.5 kg | Excellent for jobs on-site, overhead work, or portability around a workshop. |
| Weight | 2 kg |
|---|
Reviews
There are no reviews yet.
