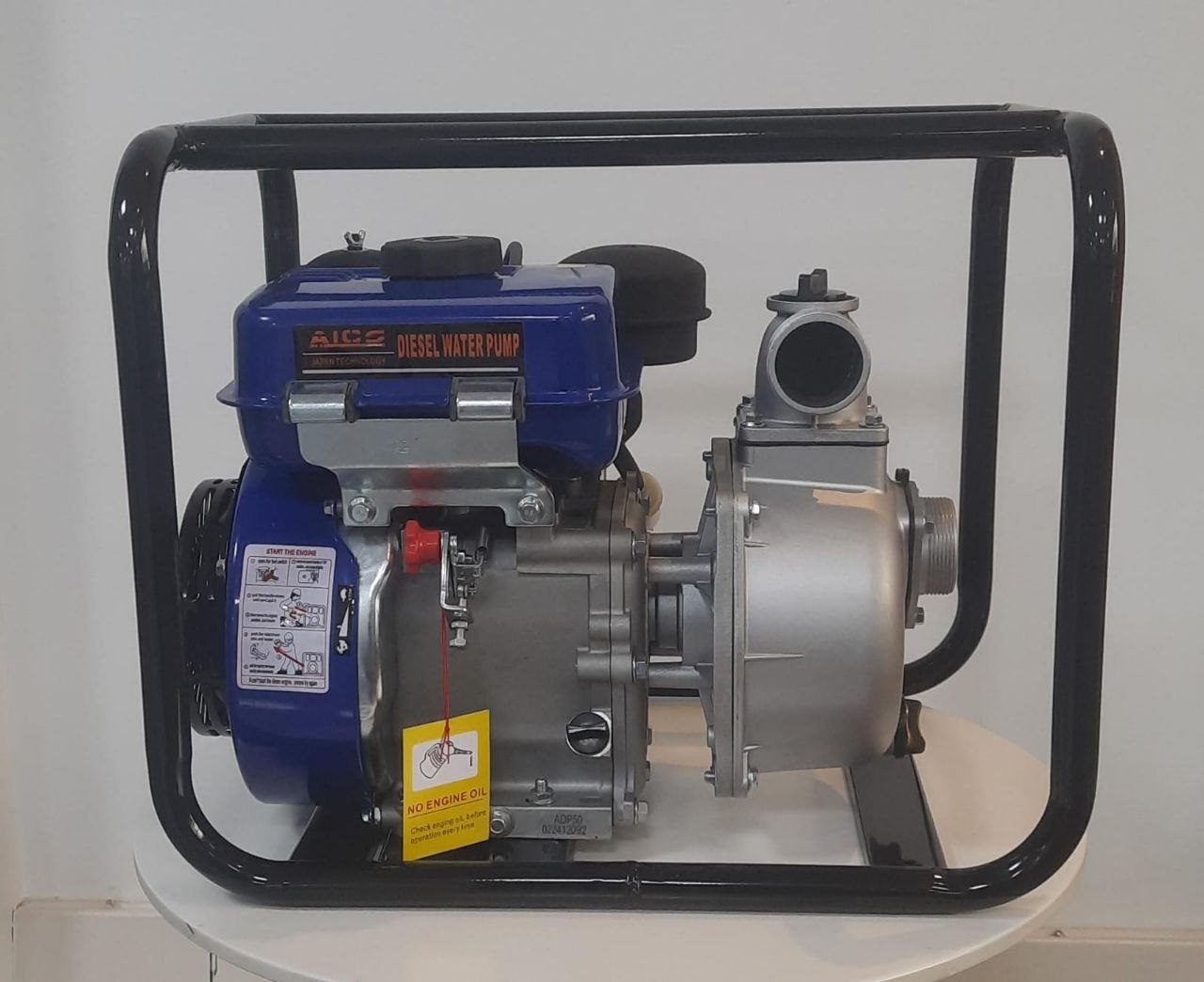

Aico Japan Diesel water pump 2 inches NORMAL PRESSURE with 8HP Engine

Core Technical Specifications

• Model Code: ADP50 (50mm port diameter layout)

• Inlet/Outlet Diameter: 2 Inches (50 mm)

• Engine Power: 8.0 HP Single-Cylinder, 4-Stroke, Air-Cooled Industrial Diesel Engine

• Fuel Type: Pure Diesel (Requires high-grade diesel engine oil like SAE 15W-40 in its separate crankcase sump)

• Pump Mechanism: Centrifugal, Self-Priming (Once the pump casing is filled with water initially, it automatically evacuates air lines to pull water)

• Max Flow Rate: $\approx 500 \text{ to } 700 \text{ Litres/minute}$ (Up to $30 \text{ to } 42 \text{ m}^3\text{/hour}$ capacity)

• Maximum Vertical Head (Lift): Up to 26 – 30 Meters

• Max Suction Depth: 7 to 8 Meters vertically down from the water level

• Starting System: Heavy-duty manual recoil pull start with a mechanical decompression lever on the head block.
