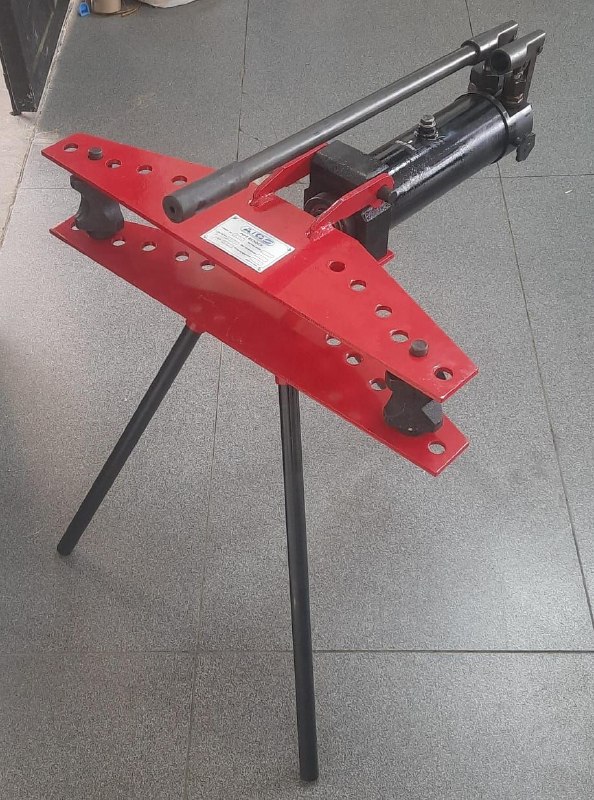

Aico Japan Brand Hydraulic Pipe Bender SWG-2A 1/2 to 2 inches

Technical Specifications

• Brand/Series: Aico Japan Industrial Series

• Model: SWG-2A

• Maximum Hydraulic Ram Force: 13 Metric Tons ($130\,\text{kN}$)

• Ram Stroke/Travel: Approx. $250\,\text{mm}$

• Bending Range Capacity: $1/2\text{“}$, $3/4\text{“}$, $1\text{“}$, $1\text{–}1/4\text{“}$, $1\text{–}1/2\text{“}$, and $2\text{“}$ (Nominal Pipe Size)

• Bending Angle Range: $0^\circ \text{ to } 90^\circ$ maximum per setup position

• Compatible Pipe Wall Thickness: Optimized for standard Schedule 40 gas, water, galvanized, and black iron steel pipes ($2.75\,\text{mm}$ to $4.5\,\text{mm}$ wall thickness)

• Chassis Design: H-frame horizontal configuration with three detachable support legs and an integrated manual pump handle
